Spatial Class Reference

#include <Spatial.h>

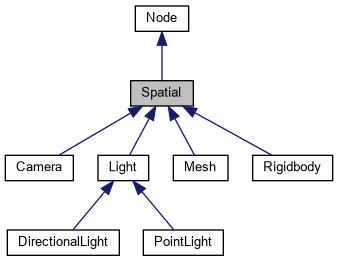

Inheritance diagram for Spatial:

Collaboration diagram for Spatial:

Public Member Functions
virtual Name	GetType () const
Transform	GetTransform ()
void	SetTransform (Transform transform)
Transform	GetGlobalTransform ()
void	SetGlobalTransform (Transform globalTransform)
virtual void	Translate (Vector3 offset)
void	RotateX (float phi)
void	RotateY (float phi)
void	RotateZ (float phi)
void	UniformScale (float scale)
virtual Spatial *	Create ()
virtual Spatial *	Duplicate ()
virtual Spatial *	Instance ()
Public Member Functions inherited from Node
	Node (bool isPrefab)
bool	IsPrefab ()
NodeList	GetChildren ()
void	AddChild (Node *child)
Node *	GetParent ()
void	QueueFree ()
void	DoFree ()

Additional Inherited Members
Static Public Member Functions inherited from Node
static Node *	GetRoot ()

Detailed Description

Spatial nodes have a transform property. They can be subclassed or instanced as an anchor for their children.

Member Function Documentation

Create()

Spatial * Spatial::Create ( )

virtual

Allocates a new "default" version of this node.

Returns

A reference to the node.

Reimplemented from Node.

Reimplemented in Rigidbody, Mesh, PointLight, DirectionalLight, and Light.

Duplicate()

Spatial * Spatial::Duplicate ( )

virtual

Copies the properties of this node to a newly allocated node, created via Create. Subclasses should override this to copy additional class attributes

Returns

A reference to the duplicate

Reimplemented from Node.

Reimplemented in Rigidbody, Mesh, PointLight, DirectionalLight, and Light.

GetGlobalTransform()

Transform Spatial::GetGlobalTransform

(

)

Gets the translation with relation to the world origin

Returns

the global transform

GetTransform()

Transform Spatial::GetTransform

(

)

Gets the transform property of this spatial

Returns

The transform

Instance()

Spatial * Spatial::Instance ( )

virtual

Creates an instanced version of this node, by calling Duplicate. Subclasses should override this to perform neccesary tasks for instantiation, i.e. adding a physic object to the physics world. Any children of this node will also be instanced.

Returns

an instanced version of this node.

Reimplemented from Node.

Reimplemented in Rigidbody, Mesh, PointLight, DirectionalLight, and Light.

RotateX()

void Spatial::RotateX

(

float

phi

)

Rotates the Camera phi radians about the X axis

Parameters

phi	The amount to rotate in radians

RotateY()

void Spatial::RotateY

(

float

phi

)

Rotates the Camera phi radians about the Y axis

Parameters

phi	The amount to rotate in radians

RotateZ()

void Spatial::RotateZ

(

float

phi

)

Rotates the Camera phi radians about the Z axis

Parameters

phi	The amount to rotate in radians

SetGlobalTransform()

void Spatial::SetGlobalTransform

(

Transform

globalTransform

)

Sets the transform with relation to the world origin

Parameters

globalTransform

The global transform property

SetTransform()

void Spatial::SetTransform

(

Transform

transform

)

Sets the transform property of this spatial.

Parameters

transform

The transform property

Translate()

void Spatial::Translate ( Vector3  offset )

virtual

Directly translates the spatial by offset

Parameters

offset

The offset of the transform operation

Reimplemented in Rigidbody.

UniformScale()

void Spatial::UniformScale

(

float

scale

)

Scales the spatial by scale uniformly

Parameters

scale

The amount to scale by.

---

The documentation for this class was generated from the following files:

• Spatial.h
• Spatial.cpp
